Stainless Hlau Pob Bearing SS629ZZ SS629-2RS
Peb 629ZZ / 2RS stainless hlau sib sib zog nqus groove pob bearings muab kev tiv thaiv corrosion nrog ob txoj kev foob: ZZ (ob chav hlau thaiv) rau kev tiv thaiv plua plav, 2RS (ob chav roj hmab foob) rau kev txhim kho cov roj nplua nyeem. Tsawg-kev sib txhuam, siab- precision, lawv haum me me motors, khoom siv kho mob, khoom noj khoom haus machinery. Kev lag luam- tus qauv, txhim khu kev qha rau ib puag ncig hnyav.
- Khoom Taw qhia
Basic Parameters
| Yam khoom | Specification |
|---|---|
| Bearing Model | SS629 ZZ / SS629 2RS |
| Inner Diameter (d) | 9mm ib |
| Sab nraud txoj kab uas hla (D) | 26 mm |
| Dav (B) | 8mm ib |
| Qhov hnyav | 0.0185 KG |
| Hom kabmob | Deep Groove Pob Bearing |
| MOQ (Kev txiav txim yam tsawg kawg nkaus) | 500 pcs |
| HS Code | 84821020 |
| Qauv Kev Pabcuam | Muaj |
| Tus naj npawb ntawm kab | Ib kab |
| Rolling Element | Pob Bearing |
Daim duab kos
Technical Specs
| Yam khoom | Specification |
|---|---|
| Khoom siv |
420 Stainless hlau (Standard) Yeem: 304 / 316 / 440 Stainless Hlau |
| Precision Class | ISO P0| ISO P6| ISO P5 |
| Hom foob | SS629 ZZ / SS629 2RS |
| Kev khiav hauj lwm Temp | -30℃~ +120 degree |
| Lubrication | Zaub mov qib roj (Standard) |
| Clearance | C0-Medium/C3-Los/C2 |
Cov Khoom Xaiv HAXB SS629 ZZ / SS629 2RS muaj nyob rau hauv ntau qib stainless hlau:
- **420 (Standard)**: High hardness, zoo mechanical performance.
- **304**: Zoo corrosion kuj, economical, lub teeb lub luag hauj lwm.
- **316**: Zoo heev corrosion kuj, rau marine & hnyav ib puag ncig.
- **440**: Siab hardness & hnav tsis kam, hwm bearing kev ua tau zoo.
Daim ntawv thov & Cov ntaub ntawv
| Daim ntawv thov teb | Yam khoom siv |
| Cov Khoom Siv Hauv Tsev | Hluav taws xob kiv cua, juicers, blenders, plaub hau tshuab, me me hluav taws xob motors. |
| Chaw Ua Haujlwm & Cov Khoom Siv Hluav Taws Xob | Cov tshuab luam ntawv, tshuab luam ntawv, cov cuab yeej hluav taws xob me, hluav taws xob shavers. |
| Khoom noj khoom haus & dej haus Machinery | Cov khoom siv ua zaub mov me me, tshuab kas fes, mixers. |
| Khoom siv kho mob | Cov cuab yeej kho mob, cov cuab yeej kho mob, cov cuab yeej kuaj xyuas qhov tseeb. |
| Hobby & Qauv Khoom | Cov qauv tswj chaw taws teeb, DIY cov khoom ua si, hluav taws xob skateboards. |
| Marine & Cov Khoom Siv Sab Nraud | Cov khoom siv marine me me, cov cuab yeej sab nraum zoov, qhov chaw ntub dej. |
Pom zoo haum haum:
Lub nplhaib puab (9 hli bore) nrog ncej: H7 / k6 (hloov haum los yog lub teeb cuam tshuam haum)
Lub nplhaib sab nraud (26 hli OD) nrog tsev nyob: H7 / js7 (clearance haum lossis hloov haum)
Cov khoom no ua kom muaj kev sib hloov ruaj khov, tsim nyog ua ntej, thiab lub neej ua haujlwm ntev rau 629 stainless hlau bearings.
Installation Notes
<1>Siv lub siab sib xws los txhim kho cov kabmob; zam lub nplhaib sab nraud, lub nplhaib sab hauv, lossis cov khoom dov ncaj qha.
<2>Khaws cov kabmob, ncej, thiab vaj tse huv si thaum lub sijhawm teeb tsa kom tsis txhob muaj plua plav lossis impurities nkag mus.
<3>Tsis txhob ua kom sov stainless hlau bearings kom kub siab heev.
<4>Siv cov lubrication uas tsim nyog ua ntej ua haujlwm kom txo qis kev sib txhuam thiab txuas ntxiv lub neej kev pab cuam.
<5>Xyuas kom cov kabmob yog mounted square thiab ua kom raug kom tsis txhob eccentricity los yog suab nrov txawv txav.
Cov duab khoom
Vim li cas thiaj xaiv HAXB rau SS629 ZZ / SS629 2RS?
HAXB SS629 ZZ thiab SS629 2RS stainless steel bearings yog engineered raukev ua haujlwm ruaj khov, kev ua haujlwm ntev, thiab kev ua haujlwm ruaj khovnyob rau hauv me me precision khoom. Peb muab cov khoom zoo tshaj plaws, kev tswj xyuas nruj, thiab kev tsim khoom zoo ib yam kom tau raws li qhov xav tau ntawm kev lag luam, kev lag luam, thiab kev siv txhua hnub - siv daim ntawv thov.
Nqe lus 1:
Peb siv qib siab - qib stainless hlau suav nrog304, 316, 420, thiab 440kom muaj zog corrosion kuj, siab hardness, thiab zoo hnav tsis kam. Txhua bearing yog tsim nyob rau hauv cov txheej txheem ruaj khov los xyuas kom meej meej precision, tsis tshua muaj suab nrov, thiab du rotation. SS629 series txhawb nqa radial thiab axial loads nrog tsis tshua muaj kev sib txhuam thiab ntev -lub sij hawm durability.
Nqe 2:
HAXB SS629 ZZ ntaob chav hlau thaivrau kev ua haujlwm tsis muaj plua plav thiab siab - khiav ceev. SS629 2RS sivob chav roj hmab fooblos tiv thaiv lubricant to kom zoo thiab thaiv cov plua plav, noo noo, thiab cov kab mob me me. Ob lub qauv yog ua ntej-lubricated thiab npaj siv, haum rau cov khoom siv hauv tsev, cov cuab yeej hluav taws xob, khoom siv kho mob, khoom noj khoom haus, thiab khoom siv sab nraum zoov.
Nqe 3:
Txhua HAXB SS629 bearing dhau qhov kev soj ntsuam nruj thiab kev ua haujlwm. Peb txhawb nqa ntau lawm, xa khoom sai, thiab khoom ruaj khov. Customization rau cov ntaub ntawv, precision, thiab ntim yog muaj. Nrog kev txhawb nqa kev tshaj lij thiab tus nqi- cov kev daws teeb meem zoo, HAXB yog koj tus khub ntseeg siab rau cov kabmob me me stainless hlau.
Daim ntawv thov:
SS629ZZ stainless hlau me me bearing nta zoo heev corrosion kuj, kev tu cev thiab tsis yog- cov khoom sib nqus, zoo tagnrho rau cov cuab yeej kho mob, cov cuab yeej kho mob thiab cov cuab yeej ntsuas qhov tseeb. Nrog ZZ shields, tsis tshua muaj suab nrov, tsis tshua muaj kev sib txhuam thiab kev sib hloov ruaj khov, nws ua kom muaj qhov tseeb thiab kev ntseeg siab. Compact, ruaj thiab yooj yim los tswj, nws yog dav siv hauv cov cuab yeej kho mob, cov cuab yeej precision thiab cov tshuab ntsuas.

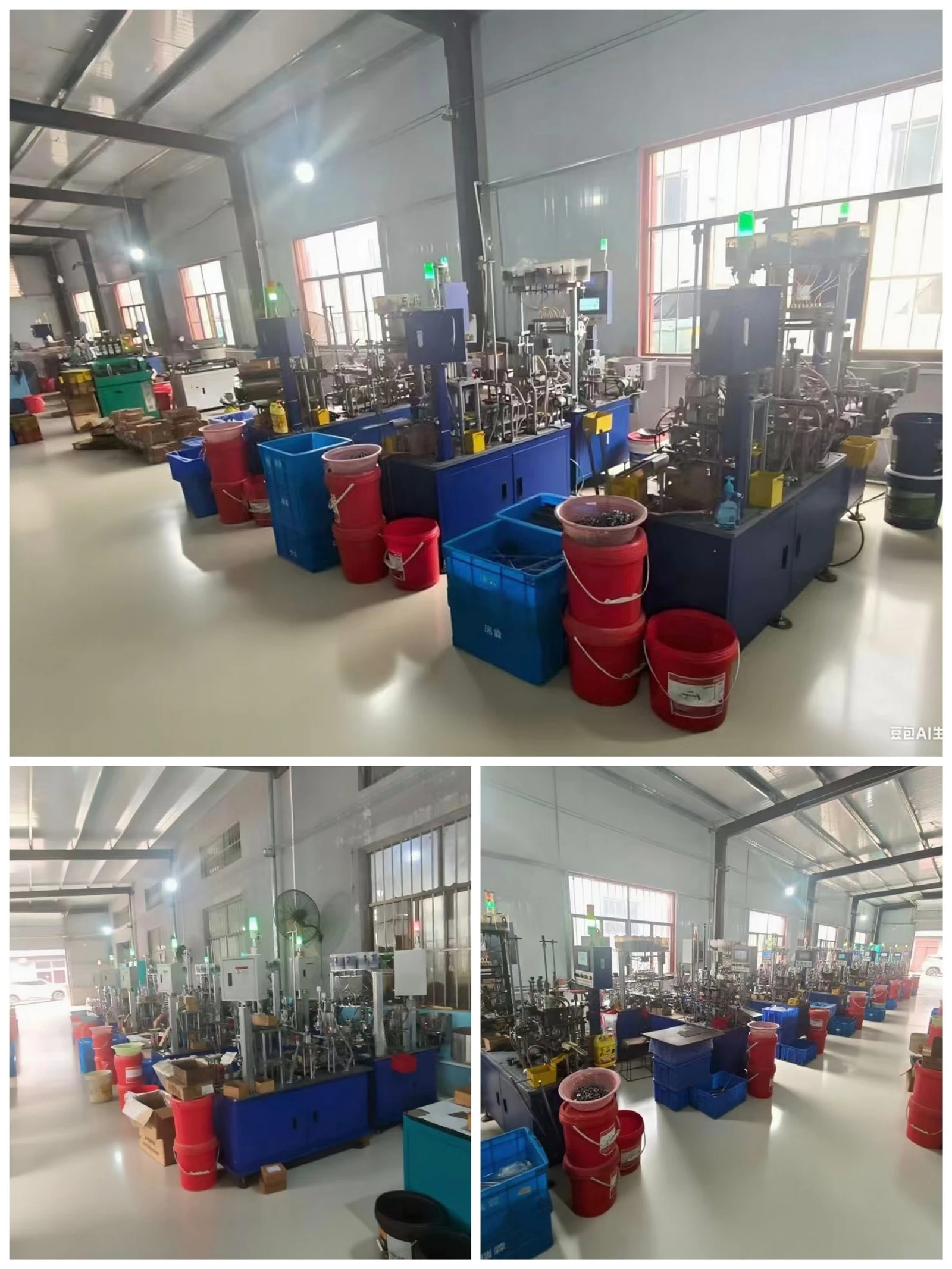

HAXB Bearing Production Rhiav
HAXB Ntim Thiab Thauj Khoom
Exhibition
Cia peb siv lub sijhawm no los tham txog kev koom tes hauv qhov tob. Peb npaj txhij los tshawb nrhiav cov kev daws teeb meem uas muaj txiaj ntsig zoo-Txawm li cas los xij rau kev hloov kho cov khoom lag luam, kev ua kom zoo ntawm cov saw hlau, lossis kev sib koom ua lag luam ntev -. Peb tos ntsoov rau kev hais lus muaj txiaj ntsig thiab yeej- yeej yav tom ntej nrog koj!
